Soldering Recommendations

HALO Electronics recommends the following reflow soldering*, IPC/JEDEC J-STD-020C compatible, and wave soldering profiles for processing its Pb-Free surface mount and through-hole products. HALO SMT products are tested to withstand maximum peak temperature up to 260°C.

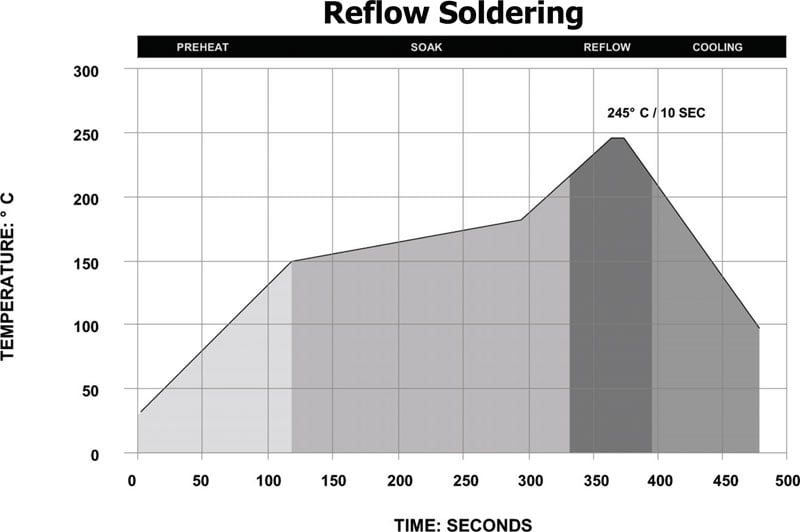

Lead Free Reflow Soldering Recommendations

Maximum duration of peak temperature shall not exceed 10 seconds.
Maximum duration of temperature above 217°C shall not exceed 90 seconds.
Maximum ramp rate up 3°C/down 6°C per second.
* Temperature shall be taken from the component leads (pins).

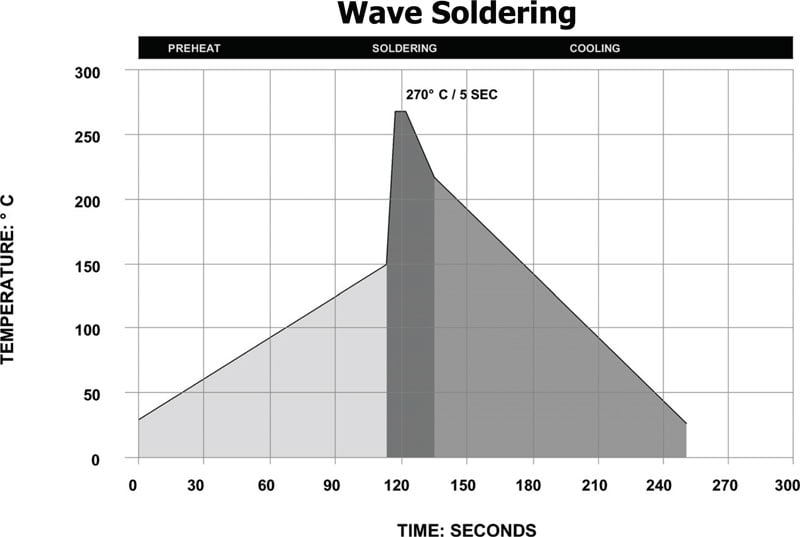

Lead Free Wave Soldering Recommendations

Maximum dwell time in the solder wave (270°C) shall not exceed 5 seconds.
