| Package Type | Quantity per Reel (pcs) |
Carrier Tape Width (mm) |
Pitch (mm) |

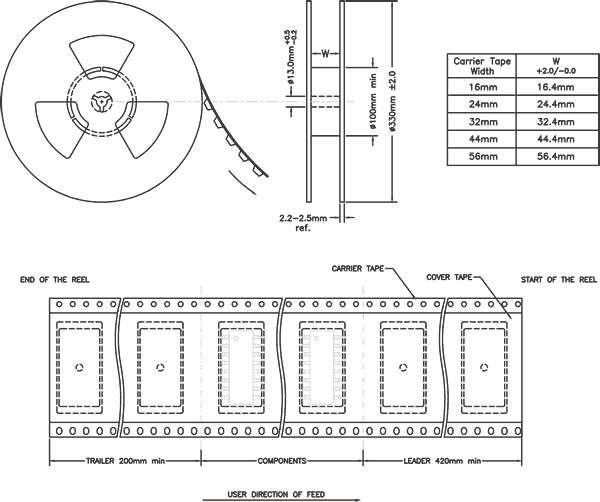

Download Tape Specifications |
|---|---|---|---|---|
| J/J1/J2 | 1200 | 24 | 12 |  |
| J24 | 650 | 24 | 24 | |
| N/N1/N2/N3 | 1000 | 24 | 12 | |
| N5 | 700 | 24 | 12 | |
| N6 | 500 | 32 | 16 | |
| N12 | 500 | 32 | 24 | |
| NA | 500 | 24 | 16 | |
| NC | 300 | 32 | 24 | |
| ND | 300 | 44 | 16 | |
| NF | 300 | 32 | 24 | |
| NH | 150 | 56 | 32 | |
| NJ | 400 | 32 | 24 | |
| NJ30 | 300 | 32 | 24 | |
| NL | 500 | 44 | 16 | |
| NM5 | 500 | 24 | 16 | |
| NS | 1000 | 16 | 12 | |
| NS8 | 1000 | 24 | 12 | |
| NT | 1000 | 16 | 12 | |
| NU | 450 | 44 | 16 | |
| NV | 200 | 44 | 28 | |
| NV6 | 250 | 44 | 24 | |
| NW | 300 | 44 | 20 | |
| NX | 300 | 44 | 24 | |
| NY | 350 | 32 | 24 | |
| NYN | 330 | 32 | 20 | |
| NZ | 400 | 32 | 24 | |
| NZ5 | 310 | 32 | 28 | |
| P/P1/P2 | 2000 | 24 | 12 | |
| P3 | 2000 | 24 | 12 | |
| PH/PH1/PH2 | 1500 | 24 | 12 | |
| V6 | 300 | 32 | 20 | |
| V8 | 250 | 44 | 20 | |
| V12 | 200 | 44 | 24 | |
| EP7(L) | 300 | 32 | 20 | |
| EP7(S8) | 300 | 32 | 20 | |
| EP10 | 200 | 44 | 20 | |
| EP13 | 150 | 44 | 24 | |
| EFD15 | 200 | 44 | 28 | |
| EFD20 | 120 | 56 | 28 | |
| EFD25 | 70 | 56 | 36 | |
